Cleaning machine
QY Series Movable Bin Washer
QY series Mobile Bin Washer is mainly applied in the production of solid preparations in the pharmaceutical industry for container cleaning or fixed, large, inconvenient to move and disassemble equipment, etc. According to needs, it can also clean any other items and devices suitable for flushing cleaning. This machine can also be applied in cleaning operations in the food, and chemical industries.
工作原理
WORKING PRINCIPLE

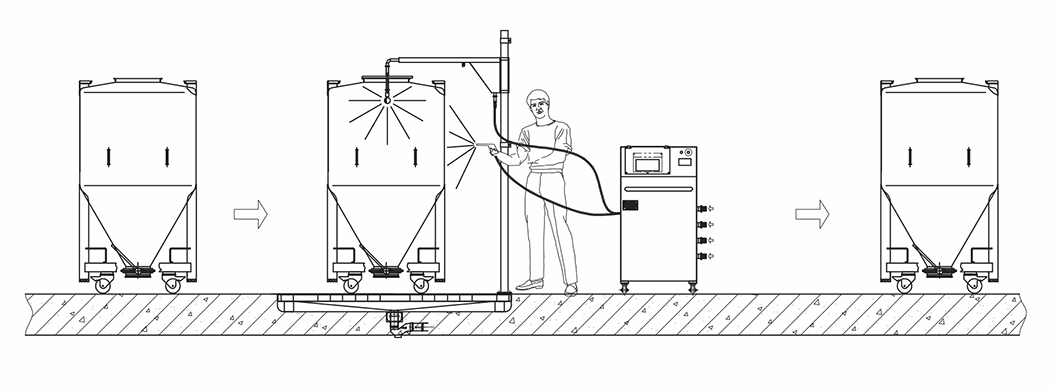

This equipment is composed of pump station group, pneumatic valve, pneumatic system, and control system. On operation, firstly open the lid of the bin or container to be washed, and put on the lid which with washing spray ball. Prepare the washing processes and set down the washing procedure, washing time, accordingly. Upon confirmation of the set down procedure & formula, start the container internal washing accordingly; The external surface need to be washed manually by operator with a high pressure water jet.

产品特点
PRODUCT FEATURES

1.This movable washer is stand alone design with structure of: four inlets, two outlets

(①internal washing, appoint with a 360。 rotation washing spray ball for washing the container internal surface. ②External washing, appoint with a high pressure water jet for manual washing the container external surface)


2.The washer is mounted with 4 wheels to simplify the moving.


3.The controls is offered with choice of button & relay control, or PLC & HMI control, for customer selection.


4.The system designed and fabricated according to the latest GMP regulation.
