Cleaning machine

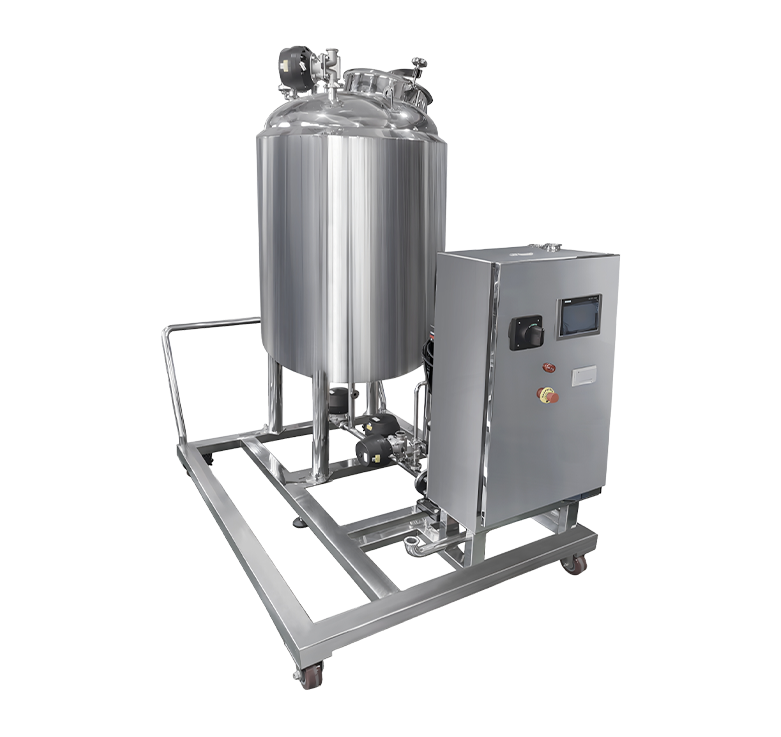

QZ Series Combined Bin Washer
QZ series Mobile Bin Washer is mainly applied in the production of solid preparations in the pharmaceutical industry for container cleaning or fixed, large, inconvenient to move and disassemble equipment, etc. According to needs, it can also clean any other items and devices suitable for flushing cleaning. This machine can also be applied in cleaning operations in the food, and chemical industries.
工作原理
WORKING PRINCIPLE

The machine is composed of a box body, vertical multistage pump, pneumatic valve, pneumatic control system, (water storage tank, heat exchanger optional), and electrical control system.  When working, open the lid of the IBC, Bins, and other containers to be cleaned, and put the lid equipped with the cleaning rotating nozzle, to be ready for clean. Set the cleaning procedure and cleaning time according to the process requirements, and clean the inner surface according to the set procedure after setting, and the outer surface of the container is manually cleaned with a high-pressure water gun.


产品特点
PRODUCT FEATURES

1.There are 4 entrances and 2 exits(①Internal washing, equipped with a 360-degree rotating cleaning ball to clean the inner surface of the bin;②External washing, equipped with a high-pressure water gun, manually clean the external surface of the bin)


2.Normally fixed installation in the auxiliary machine room.


3.Optional water storage tank for buffer, heater for hot water preparation, control system for button, relay control and PLC touch screen control two options.


4.The equipment is designed and manufactured in accordance with the latest GMP requirements.
