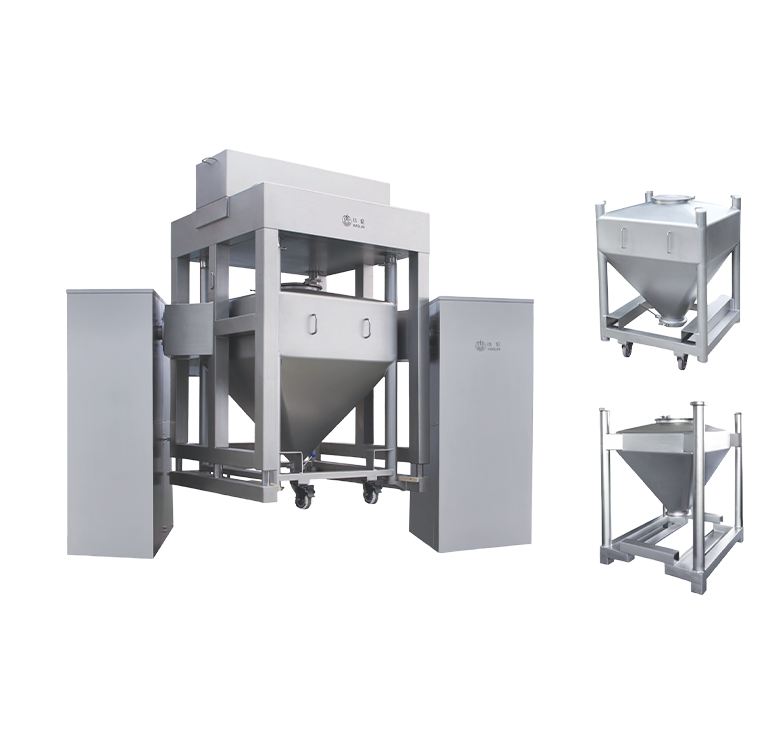

This machine is composed of frame, clamping type of rigid rotating shell (hereinafter called “rotating shell”), lift descend /clamp, drive, brake and control systems.
When start working, firstly, put the loaded square mixing bin (hereinafter called “bin”) into rotating shell and a position signal will be sent by the control system when the bin fixed position. Press “confirm” key on the touch panel, the bin will be automatically raised in position and clamped by the lift descend /clamp system. After the bin fully clamped, the drive system starts blending according to the setting time and rotating speed. On achieving the set mixing time, the rotating shell slow down automatically, and brake system operates to stop the rotating shell vertically for moving the bin out easily and the blending task finished. Then the lift descend /clamp system work to lower the bin on the ground. Meanwhile, the printer will print out complete data of this batch. Finally, move out the bin from rotating shell and thus finish this blending cycle.
